Detailed Product Description
Overview
Metis Series Magnetic Particle Yoke is a portable micro magnetic particle flaw detector that uses a yoke to magnetize a work-piece made of ferromagnetic material. It can magnetize various parts and is suitable for oil fields, shipbuilding, internal combustion engine parts, coal mines, machinery, and standard parts, oil pump nozzles, aircraft manufacturing, automotive parts, bridges, chemicals, boiler pressure vessels, railways and other industrial products, surface and near surface defects caused by forging, quenching, welding, fatigue, etc., such as chain rods, crankshafts, bearings, high Flaw detection of complex geometrical work-pieces such as bolts, springs, forgings, petrochemical fittings, valves, blades, gears, rolls, anchor chains and welds.
Features
1. The lifting power can reach more than 6.5KG, far exceeding the international standard 4.5KG, which can avoid flaw detection and missed inspection.
2. The power interface adopts super waterproof, which can be used normally in harsh working conditions.
3. Lightweight ergonomic design reduces the fatigue of the hand muscles of the operators.
4. The button is waterproof and anti-leakage to ensure the safety of flaw detection operators to the greatest extent.
5. Small and exquisite, the weight is only 2.2KG to 2.37KG.
6. The casing of this equipment is detachable, which is convenient to replace the coil, which solves the shortcoming that other yoke coils can only be scrapped and replaced when they are broken.
7. Integrated design of bevel and right angle is suitable for flat and fillet weld flaw detection.
Technical Specifications
|

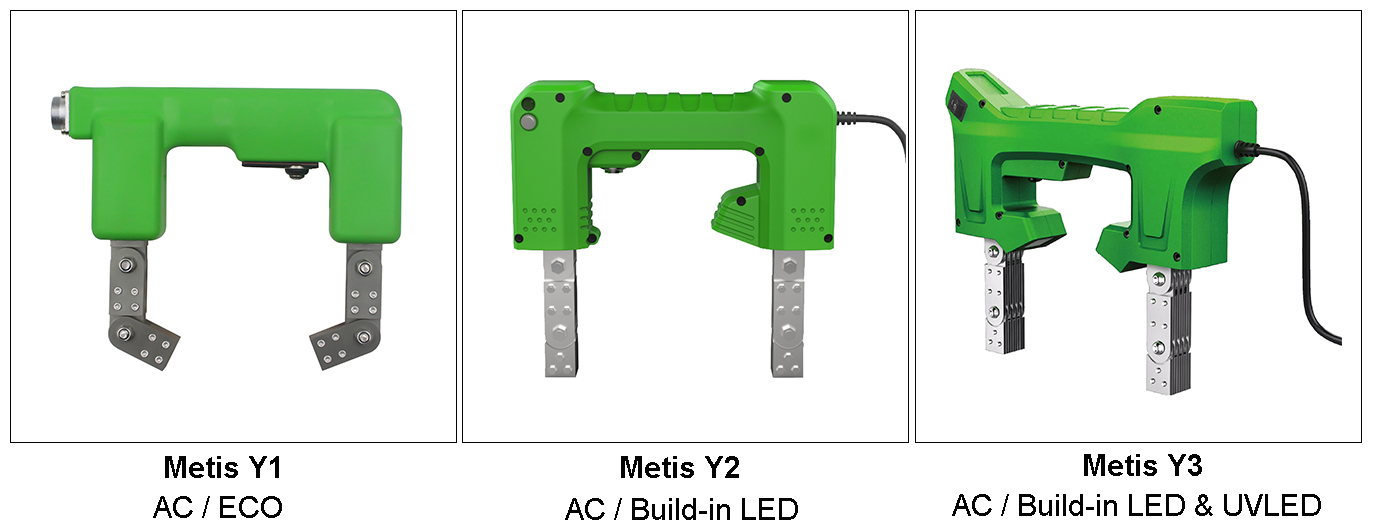

Metis Series Magnetic Particle Flaw Detector |
|
Model |
Metis Y1 |
Metis Y2 |
Metis Y3 |
|
Type |
ECO |
Build-in LED |
Build-in LED & UVLED |
|
Power Supply |
AC 220V/50Hz/60Hz 1.3A |
|
Illuminance |
/ |
White light ≥5000LUX |
White ligh: ≥5000LUX,
Black light: 5000 µW/cm² |
|
Ultraviolet central wavelength |
/ |
365nm |
|
Magnetic Distance |
10-210mm |
10-230mm |
|
Lifting Power |
> 4. 5kg (44N) |
> 6.5 kg (64N) |
|
Yoke Weight |
2.42 kg |
2.20 kg |
2.37 kg |
|
Yoke Size |
230X190X45mm |
205X52X19mm |
284X48X210mm |
|
Packaging Box |
ABS Plastic |
|
Package Size |
360X310X140 mm |
410×330×200mm |
430×370×210mm |
|
Package Weight |
5.0 kg |
5.3 kg |
5.7kg |
Operation and Precautions
1, Before the use should add a small amount of lubricating oil in the live joint pin parts。
2, Probe pole head should keep good contact with the work-piece rear can push switch, sensor before leaving the artifacts should be timely release the switch. In order to avoid improper operation instrument damage of overheating.
