Detailed Product Description
Features
- A portable instrument which can perform on-site hardness test on soft metals in accordance with American Standard ASTM B647.
- Used to check the result of heat treatment and determine if the mechanical performance of the work-piece is acceptable.
- Suitable for testing the hardness of aluminum profiles, tubing, sheets and other shapes.
- Used for testing the with long or heavy work-piece or assemblies inconvenient to be sent to the labs.
- Ideal for qualification inspection on the production site.
- Used to test aluminum profiles.
Specifications:
Measuring Scope: 0-20HW
Resolution: 0.5HW
Weight: 0.5kg
Model |
Application Range |
Hardness Range |
Specimen Dimension(mm) |
W-20 |
aluminum alloy |
25~110HRE
58~131HRV |
Thickness 0.4-6 Inner diameter>10 |
W-20a |
Thickness 0.4-13 Inner diameter>10 |
W-20b |
Thickness 0.4-8 Inner diameter>6 |

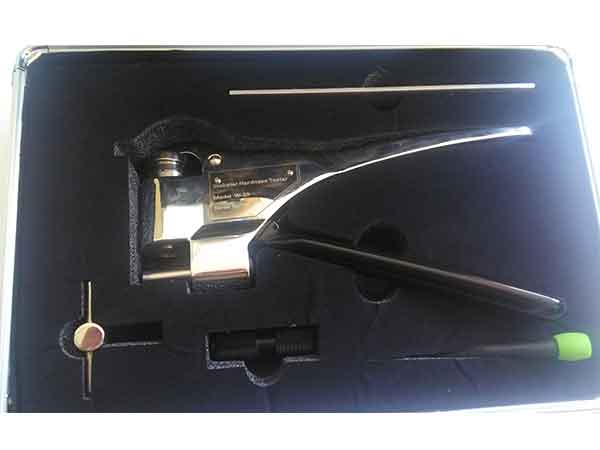

Standard Packages:
Tester
Standard hardness block
Calibration wrench
Spare indenter
Small screwdriver
Carrying case
Optional Accessories
Standard hardness blocks
Spare indenter
Calibration wrench
Dial Glass
Spare dial head
Packaging Details: |
Standard export carton box:
1 set in small carton box: 29*21*9cm 1.5kg
6 set in one big carton box: 53*32*23cm 8.0kg |
