URNDT UCI-340T Short Manual Probe Ultrasonic Hardness Tester (Tube Hardness Tester, Inner Wall Hardness Tester)

Product Details:

Place of Origin:China
Brand Name:URNDT
Model Number:UCI-340T

Payment & Shipping Terms:

Minimum Order Quantity:1 set
Packaging Details:Carton
Delivery Time:3-7 days
Payment Terms:TT 100% in advanced
Detailed Product Description
Introduction:

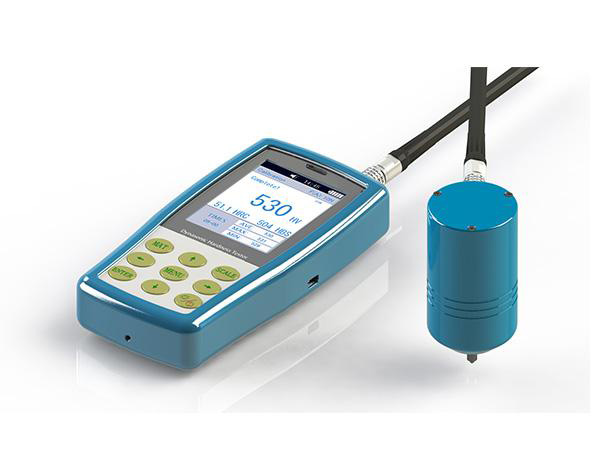

UCI-340T apply streamline design, aluminium alloy shell, high strength glass panel, with 3.2”high light color LCD, support Blue Tooth data transferring and printing, one step ahead to industrial 4.0.

Application:
UCI-340T equips with short probe, it can non-destructively measure hardness of internal wall of tube, also called Tube Hardness Tester、Inner Wall Hardness Tester.

Features:
- Perfect Accuracy: ±3% HV, ±1.5HR, ±3%HB
- Microscopic Indentation:  Only high-power microscope can observe the indentation.
- Quick Measurement: Result in 2 seconds.
- Large LCD Display: Directly display measurement result, times count, maximum, minimal, average and deviation.
- Friendly Operation: Operate well after short training.
- Promised Warranty: 2-Year warranty for main unit (Excludes Probe).
- Mass Storage: Save 1000 groups measurement data.
- Simple Calibration: Save 20 groups calibration data for invoking, improve calibration efficiency.

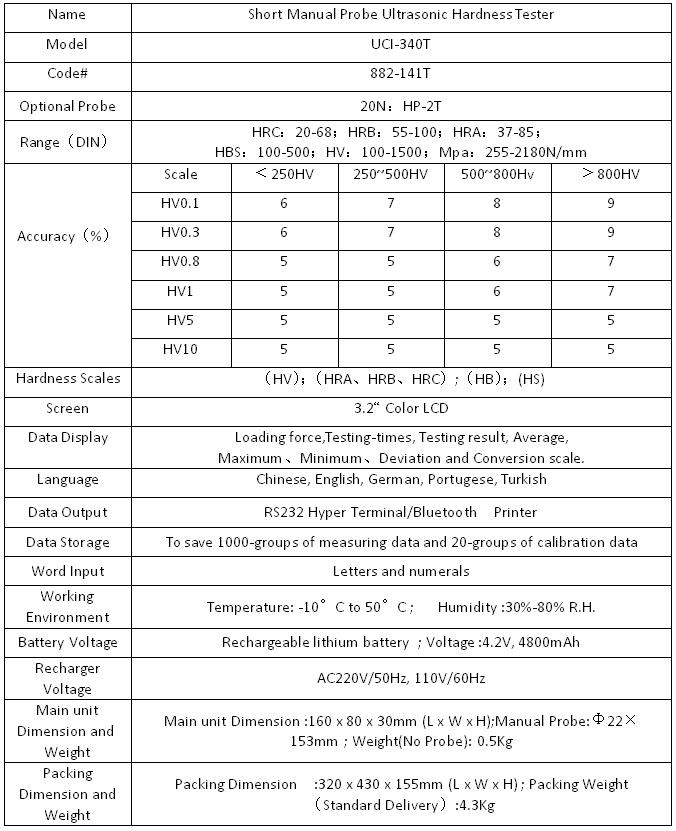

Technical Data:

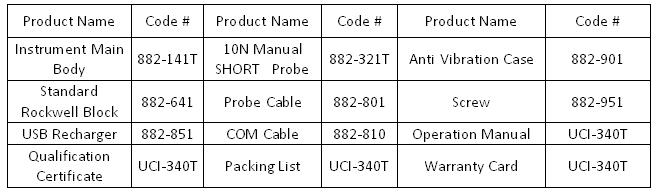

Standard Delivery:

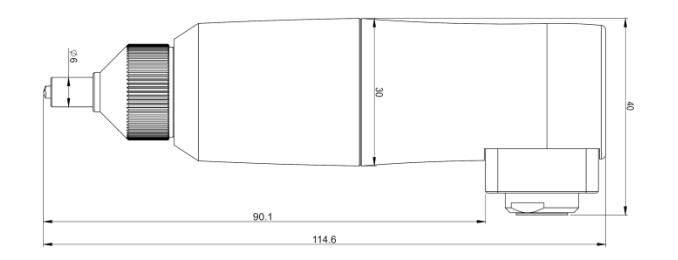

Drawings of Short Probe:
